Earth's Magnetic Field

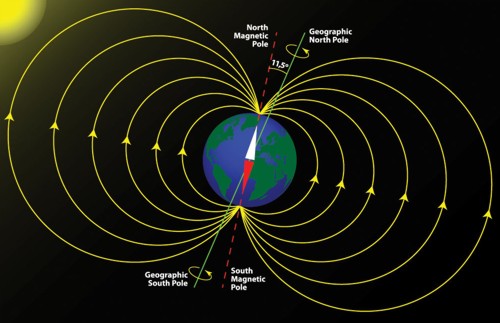

Earth's Magnetic Field :

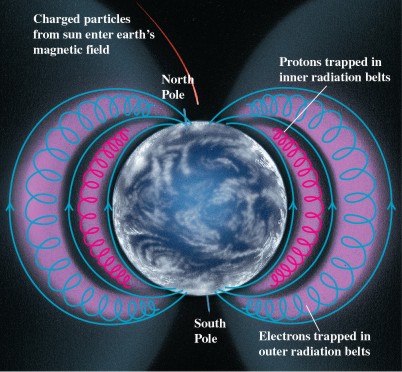

The Earth's surface and its inhabitants are protected from dangerous cosmic radiation (energetic protons) from the Sun by the Earth's magnetic field.



Using the right hand rule one can see that positively charged particles coming from the Sun will be deflected in east direction.

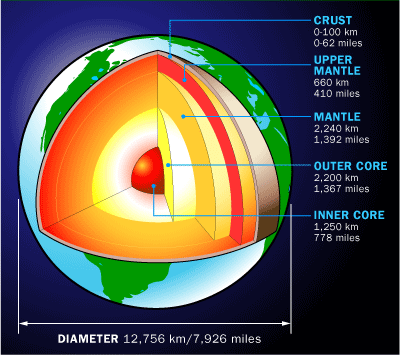

Earth's Core

Magnetic fields are produced by the motion of electrical charges. For example, the magnetic field of a bar magnet results from the motion of negatively charged electrons in the magnet. The origin of the Earth's magnetic field is not completely understood but is thought to be associated with electrical currents produced by the coupling of convective effects and rotation in the spinning liquid metallic outer core of iron and nickel. This mechanism is termed the dynamo effect.

Rocks that are formed from the molten state contain indicators of the magnetic field at the time of their solidification. The study of such "magnetic fossils" indicates that the Earth's magnetic field reverses itself every million years or so (the north and south magnetic poles switch). This is but one detail of the magnetic field that is not well understood.


Our planet’s magnetic field is believed to be generated deep down in the Earth’s core. Nobody has ever taken the mythical journey to the centre of the Earth but by studying the way shockwaves from earthquakes travel through the planet physicists have been able to work out its likely structure.

Right at the heart of the Earth is a solid inner core, two thirds of the size of the Moon and composed primarily of iron. At a hellish 5,700°C, this iron is as hot as the Sun’s surface, but the crushing pressure caused by gravity prevents it from becoming liquid.

Surrounding this is the outer core, a 2,000 km thick layer of iron, nickel, and small quantities of other metals. Lower pressure than the inner core means the metal here is fluid.

Differences in temperature, pressure and composition within the outer core cause convection currents in the molten metal as cool, dense matter sinks whilst warm, less dense matter rises. The Coriolis force, resulting from the Earth’s spin, also causes swirling whirlpools.



This flow of liquid iron generates electric currents, which in turn produce magnetic fields. Charged metals passing through these fields go on to create electric currents of their own and so the cycle continues. This self-sustaining loop is known as the geodynamo.



The spiralling caused by the Coriolis force means that separate magnetic fields created are roughly aligned in the same direction, their combined effect adding up to produce one vast magnetic field engulfing the planet.
